Product Details

LED Connector Block - Accessories

LED Connector Block

LED Diagnostics on Remote Connector Block

  • Troubleshooting at a Glance!
  • High temperature rated to 100°C
  • Easy troubleshooting of encoders on blower cooled motors
  • LED Diagnostics on Remote LED Base
  • Allows conversion to different connector type
  • 2 Year No Hassle Warranty
CONFIGURE & PRICE ENCODER
Data sheet
Accessories
3D View

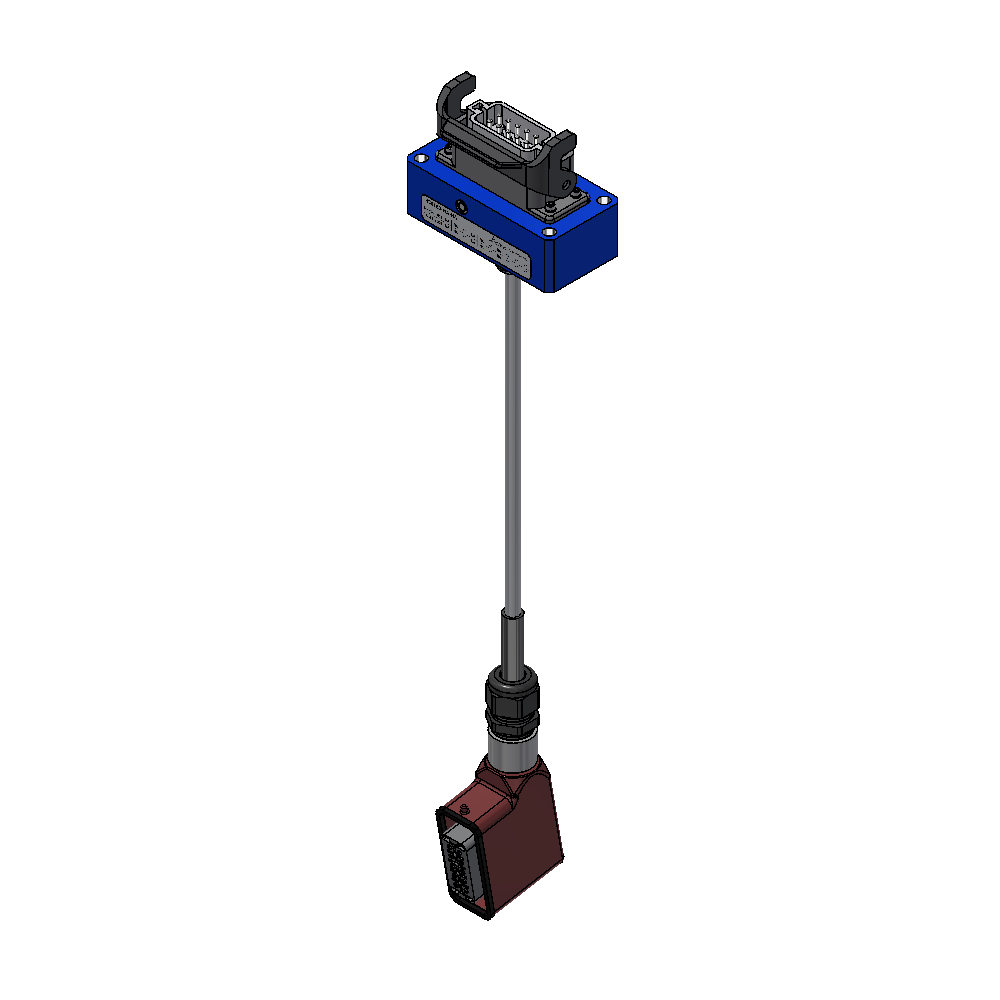

Meet the LED Remote Diagnostic Connector Block! The LEDR extends your Avtron Encoder's LED Alarm and Diagnostic features outside of the fan cover they are hidden under, allowing you to quickly and easily verify encoder functionality without having to stop your motor and remove fan covers.

Featuring two linked LEDs, the LEDR allows you to view your encoder's status from straight on or to the side of the motor. A Green LED means all is good, while a Red LED means something is wrong.

See specific encoder manual with alarm outputs for electrical specifications

  • Replace existing AV5 & AV12 "Q" Connectors
  • Adds user-friendly terminal strip connection eliminating soldering
