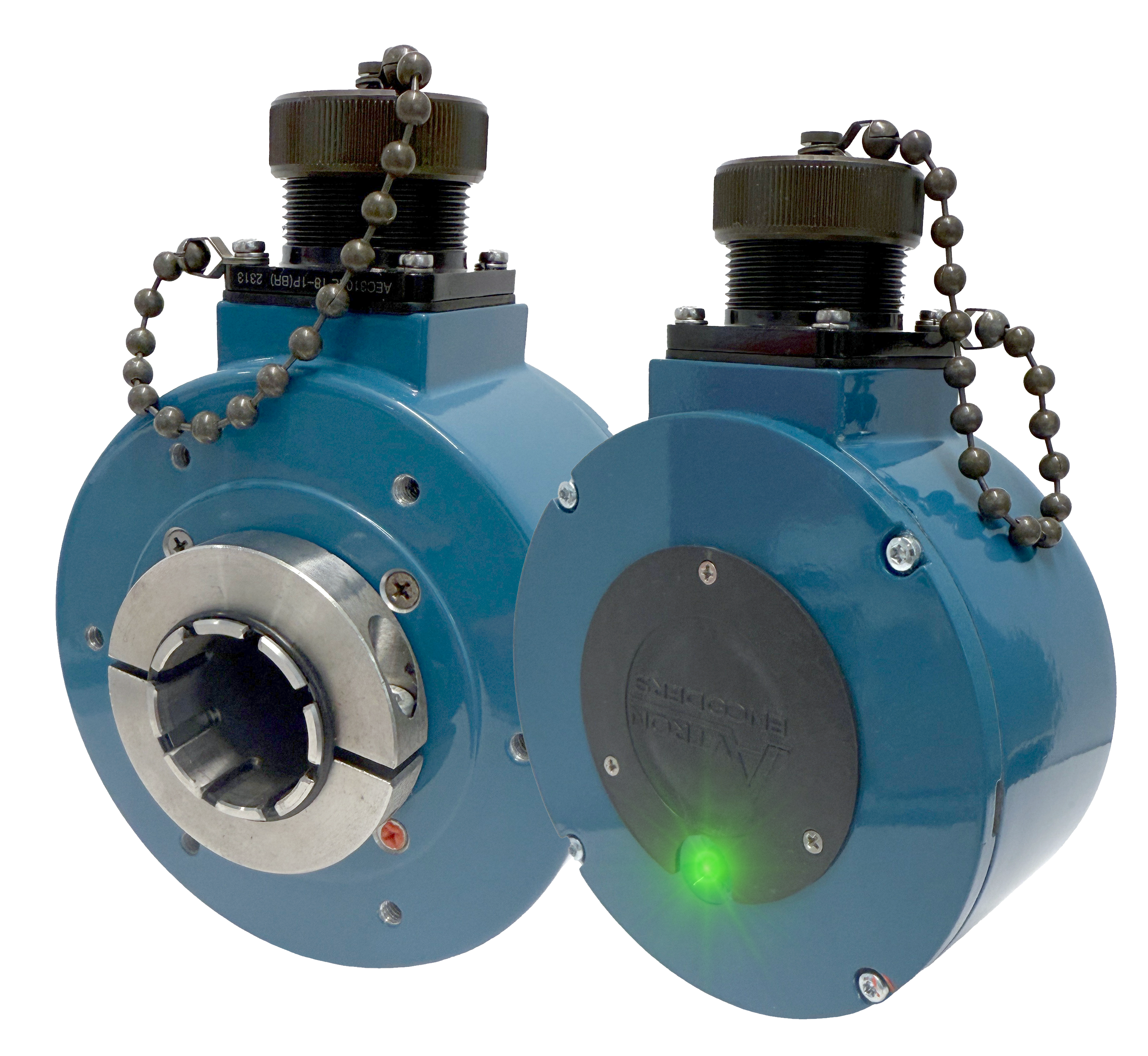

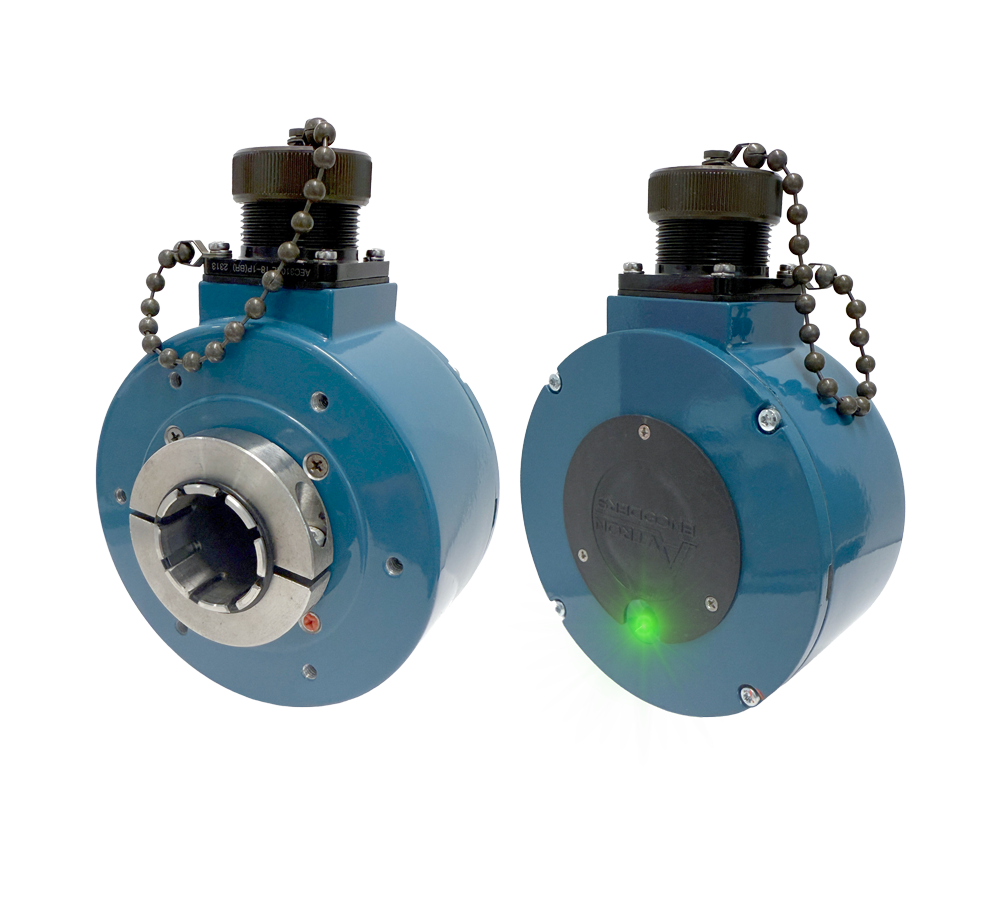

Finally--the breakthrough you have been waiting for--an intrinsically safe 3.5” magnetic encoder and high IP rating. The XR35X is drop-in compatible with all competitive 3.5 size encoders, making replacements a breeze!
XR35X encoders fit shafts from 1/2" to 1" [11mm-25mm] easily, using a durable shaft insert. Units may be resized by replacing or removing the insert, enabling our factory, distributors, and customer stockrooms to swiftly meet any need. The shaft insert and isolated bearings also provide isolation from motor shaft currents. This product also includes the threaded shaft option to use on your O&G applications!
Optical encoders suffer so many failures--broken glass disks, misaligned masks, vibration problems, condensing liquids that confuse the optics...the list never ends! Our magnetic technology is fully protected against dust, dirt, liquids and condensation. Our Wide-Gap electronics prevent rotor-sensor crashes too!
Wondering if your encoder is working right? The XR35X has full diagnostics, informing you of signal quality, and ensuring there are no shorts in the wiring to or from the encoder.
Increase your systems’ reliability today! Step up to the magnetic XR35X Revolution!
Operating Power: Volts: 5-30 VDC; Current: 80mA, no load; 5V option available.
Output Format: A Quad B with gated marker (A, /A, B, /B, Z, /Z)
Frequency Range: 0 to 250 kHz @ 5V & 1m cable
PPR: 4 - 10000 standard* (for other PPR needs, consult factory)
Speed: 6000 RPM Max., (for higher speeds, consult factory)
Temperature: -40° to 105°C**
Environmental: Up to IP66
Shaft Current Isolation: 2500VRMS
Vibration: 10-2000Hz, 17Gs
Shock: 275G, 6ms duration
Axial Bearing Load: 500 N
Radial Bearing Load: 1200 N
Weight: 1.6 lbs. [725 g] approx.
Certifications:
- UL / cUL Class I Division 2
- ATEX Zone 2 (Pending)
- IECEx Zone 2 (Pending)

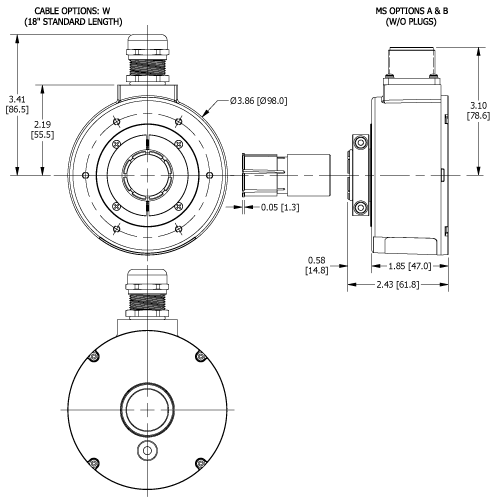

All dimensions are in inches [millimeters]
Specifications and features are subject to change without notice.
* Requires special ordering code
** Derating for higher speeds may apply
- All digital, fully integrated design
- Insulated from motor shaft currents
- Shaft ring retains clamping collar during installation
- No extra charge for signal complements and marker pulse (A, A/, B, B/, Z, Z/)
- Models can be resized by interchanging inserts
- Optional basket guard adds even more protection
- Wide-Gap Technology: Up to 10X larger gap between sensor and rotor
- Fits End of Shaft and Through Shaft Applications
| Industry | Mining | General | Wind Power | Pulp & Paper | Oil & Gas | Marine | Metals | Machinery | Crane & Hoist |
|---|---|---|---|---|---|---|---|---|---|
|
|
|||||||||
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
||||
|
|
